Rangkaian Bias Transistor dengan Pascal (Function)

Aplikasi yang saya buat ini bertujuan untuk menghitung nilai arus basis (ib), arus emiter (ie), arus collector (ic), dan tegangan collector-emiter (vce) pada rangkaian bias transistor common emiter. Terdapat 2 menu pilihan yaitu rangkaian bias tetap & rangkaian bias umpan balik tegangan. Input pada program ini yaitu nilai beta (b), tahanan emiter (Re), tahanan basis (Rb), tahanan collector (Rc) dan Vcc. Input akan diolah dengan function, terdapat tiga function yaitu ib, ic, ie & vce yang menghasilkan output masing-masing. Output akan ditampilkan dilayar.

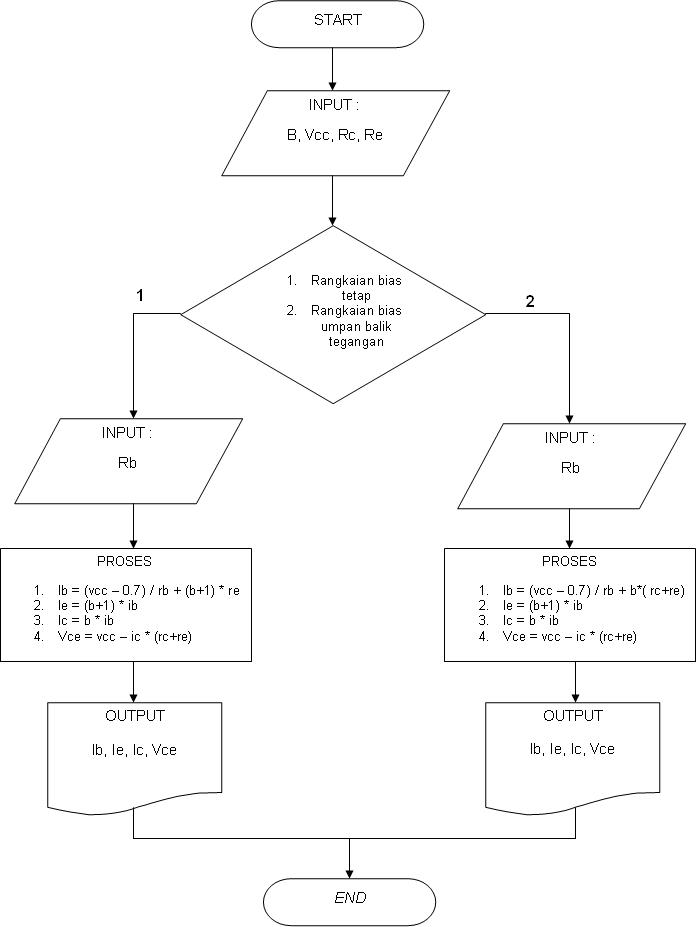

FlOWCHART :

LISTING PROGRAM :


program rangkaian_bias_transistor_common_emiter; uses crt; function f_ib(f_vcc, f_b, f_rb, f_rc, f_re, pil: real): real; var result: real; begin if (pil = 1) then begin result := (f_vcc - 0.7) / (f_rb + ((f_b + 1) * f_re)); end else begin result := (f_vcc - 0.7) / ((f_b * (f_rc + f_re)) + f_rb); end; f_ib := result; end; function f_ic(f_b, f_ib, pil: real): real; var result: real; begin result := f_b * f_ib; f_ic := result; end; function f_ie(f_b, f_ib, pil: real): real; var result: real; begin result := (f_b + 1) * f_ib; f_ie := result; end; function f_vce(f_vcc, f_ic, f_rc, f_re, pil: real): real; var result: real; begin result := f_vcc - (f_ic * (f_rc + f_re)); f_vce := result; end; var b, rc, rb, re, vcc, vce, ie, ic, ib, pilihan : real; begin clrscr; writeln(' PROGRAM RANGKAIAN BIAS TRANSISTOR COMMON EMITER '); writeln(' '); writeln(' '); write('masukkan nilai b (beta) : '); readln(b); write('masukkan nilai vcc : '); readln(vcc); write('masukkan nilai Rc : '); readln(rc); write('masukkan nilai Re : '); readln(re); writeln; writeln('--------------------------------------------------'); writeln('-----------------------MENU-----------------------'); writeln('[1] Menghitung rangkaian bias tetap'); writeln('[2] Menghitung rangkaian bias umpan balik tegangan'); write('masukkan pilihan : '); readln(pilihan); writeln('--------------------------------------------------'); if (pilihan = 1) then begin write('masukkan nilai Rb : '); readln(rb); ib := f_ib(vcc, b, rb, rc, re, pilihan); ie := f_ie(b, ib, pilihan); ic := f_ic(b, ib, pilihan); vce := f_vce(vcc, ic, rc, re, pilihan); writeln('nilai ib = ', ib:2:3, ' a'); writeln('nilai ie = ', ie:2:3, ' a'); writeln('nilai ic = ', ic:2:3, ' a'); writeln('nilai vce = ', vce:2:3, ' v'); end else if (pilihan = 2) then begin write('masukkan nilai Rb : '); readln(rb); ib := f_ib(vcc, b, rb, rc, re, pilihan); ie := f_ie(b, ib, pilihan); ic := f_ic(b, ib, pilihan); vce := f_vce(vcc, ic, rc, re, pilihan); writeln('nilai ib = ', ib:2:3, ' a'); writeln('nilai ie = ', ie:2:3, ' a'); writeln('nilai ic = ', ic:2:3, ' a'); writeln('nilai vce = ', vce:2:3, ' v'); end else begin writeln('salah input'); end; readln; end.

TAMPILAN ANTARMUKA PROGRAM :
